- Customized Neo-Pure setup for food processors with in-house drying or roasting capability
- On-site validation required for each pasteurized food
- Future flexibility with upgrade package (to the Batch or Continuous System)
- Can be used for nuts, seeds and grains, spices, vegetable dehydration and wheat flour
KEY FEATURES
PRODUCT METERING
- 20 cubic foot capacity hopper
- Rotary valve for precise volumetric metering
- 8-vane rotor assembly with staggered, radiused pockets
- Quick release opening on rails to access cleaning in place
SOLUTION METERING
- Peristaltic pumps for accurate dosing at a wide range of treatment rates
TREATMENT AND MIXING
- Customized critical control parameters based on onsite validation
- Touchscreen PLC with password protection for operators, QA, and maintenance
- Data logging and reporting of key performance data
- Removable atomizing chamber and product dispersion cone

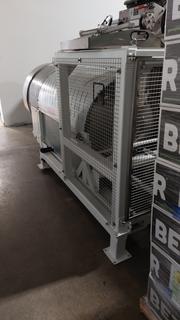

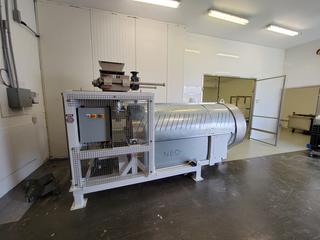

- Enclosed, 8 ft long coating drum with low profile baffles
CONSTRUCTION

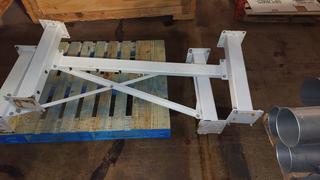

- 304 stainless steel frame; 316LSS food contact areas
- IP55 rated motors for wash-down
- Seal tight conduit for external wiring
- Full NEMA12 panels with wash-down protected connections
