Toronto, ON - Absolute Public Online Auction for Raywal Kitchens and Cabinets Giben Beam Saw

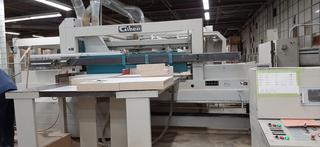

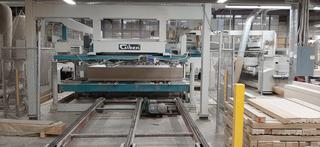

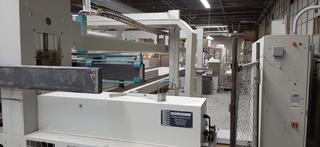

2002 Giben Model 17-Angular 480/3/60 Beam Saw *NOTE: ITEM MUST BE REMOVED BY MONDAY DEC 7TH, 2020, BUYER RESPONSIBLE FOR LOAD OUT AND DISMANTLING/RIGGING*

Bidding is closed.
High Bid:$21.00
NA
Bidding Ended: Mon, Nov 30  10:00:00 am CT
High Bidder: Wortel
Bid Increment: $1.00
Starting Bid: $1.00
Item Location: 68 Green Lane, Thornhill, ON
Item has been viewed 3,531 times.

-Transformer To 600/3/60 Included For Operation On Canada If Required

-Right Hand Execution

In- Feed Lift Table:

  - No. 4 Powered Rollers

  - Max. Pile Height 875mm

  - Raising And Lowering Speed 0.7/ 1.4m/min

  - Lift Table Into Pit 127mm Deep

- Loading From Client Supplied Roller Conveyor At Rear Lift Of Table (Roller Conveyor Excluded From Supply)

- Working Table 1130mm High

- Length Cutting Machine 3500mm (138in)

- Cross Cutting Machine 2200mm (86in)

- Saw Blade Projection 170mm (6.7in)

- Gripper Opening 160mm (6.3in)

- Main Saw Blade Diameter 565mm (22.25in)

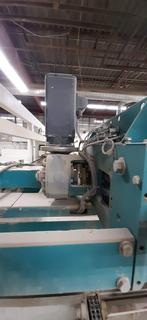

- Main Saw Blade Motors 27KW (36HP)- 60HZ

- Scoring Saw Motors 1.8KW (2.4HP)- 60HZ

- Automatic Saw Blade Projection Adjustment

- External Scoring Saw Adjustment

- Split Pressure Beams

- Saw Carriage Traverse Speed 1-70 Returning At 70 m/min

- Thin Material Loading Device With 2 Pushing Points

- Minimum Board Thickness 3.2mm

- Maximum Board Waviness 30mm

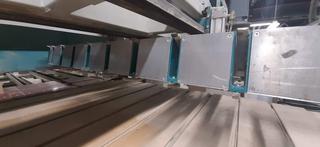

- Length Pusher With No. 5 Grippers

- Cross Pusher With 11 Grippers

- Brushless Motor On Pushers

- Pusher Forward/Return Speeds 1-40/40m/min

- Useful Distance Between Length And Cross Cutting Machine 3050mm (120in)

- 2 Length Front Aligners

- 1 Full Width Cross Front Aligner

- 2 Cross Side Aligners Plus 2 Cross Side Aligners Front And Back Of Cut Line

- Length Cutting Support Area With Rollers

- Cross Cutting Support Area Covered By Carpet

- Length Movable Table Complete With Chute For Trim Dumping

Manual Unloading Area Consisting Of:

    - 2 Air Flotation Tables 2000 X 510mm

    - 2 Air Flotation Tables 1300 X 510mm

    - Air Generator

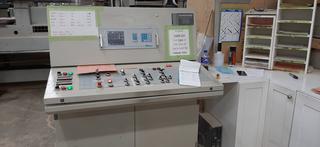

MCL Controller

     - Head Cut Logic

     - AB-BA Logic

     - SP Logic
